Flows

What a flow is

A flow is the definition of one document type: the fields you want extracted, the hints that tell the AI where to find them, and everything attached downstream. It is the only object in Tavnit that turns a document into data — Collections, Splitters and Cleaners all exist to feed or refine what a flow produces.

There is no template to draw and no coordinates to map. You describe the fields in plain terms and the flow works across layouts, so one Supplier invoices flow can handle twenty vendors whose invoices look nothing alike. That is also why the schema and its hints are where nearly all extraction quality is won or lost.

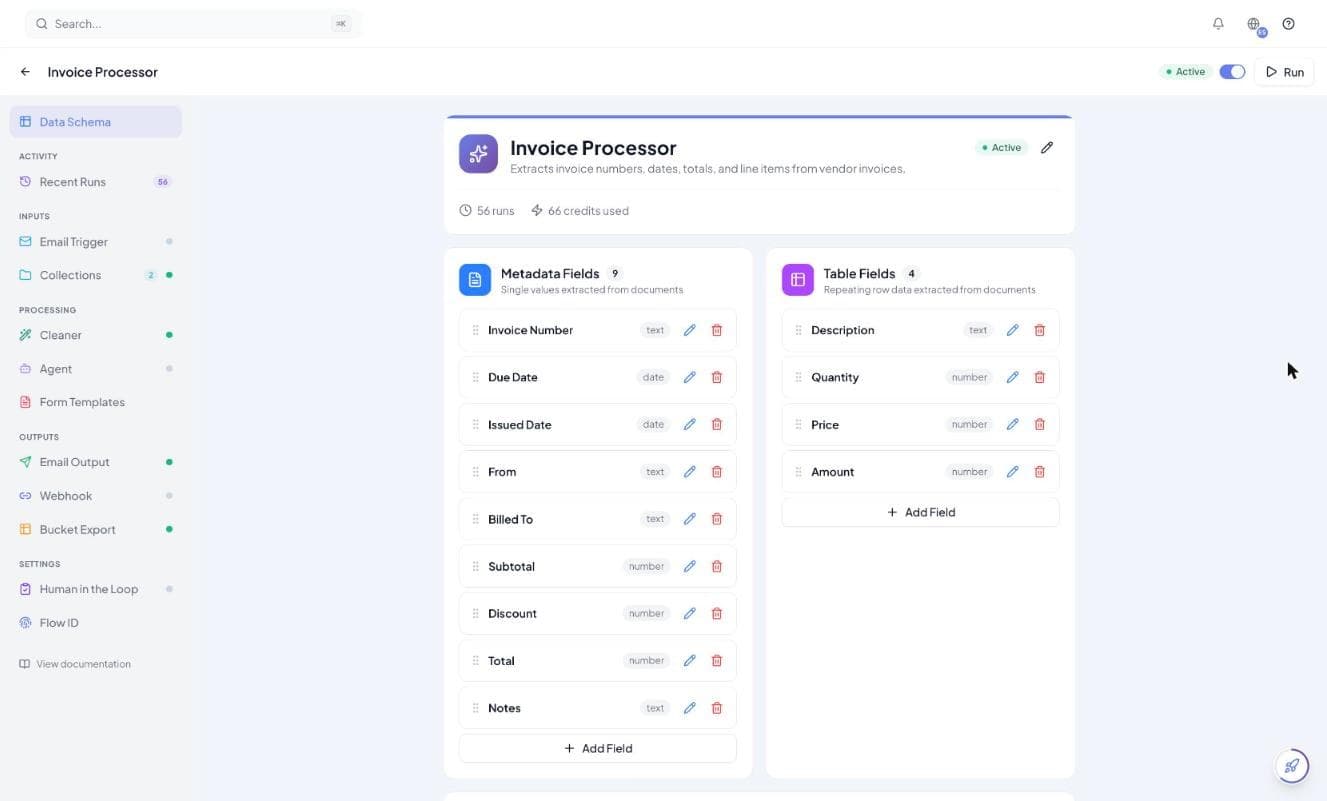

The data schema of a Tavnit flow named Invoice Processor. A Metadata Fields panel lists nine single-value fields such as Invoice Number, Due Date and Total with their data types, next to a Table Fields panel listing Description, Quantity, Price and Amount. The left rail groups Recent Runs, Email Trigger, Collections, Cleaner, Agent, Form Templates, Email Output, Webhook, Bucket Export, Human in the Loop and Flow ID. — A flow's data schema. Metadata fields on the left, repeating table fields on the right, and everything attachable to the flow in the rail.

Only the schema is required

A flow needs at least one field. Everything else in the rail — Cleaner, agent, webhook, email, Bucket export, review — is optional and can be added later without rebuilding anything.

Metadata fields and table fields

Every field is one of two kinds, decided by whether the value appears once per document or once per line. This is the most consequential choice in the schema: it determines the shape of your webhook payload, your Bucket rows, your CSV and your review screen.

	Metadata field	Table field
Appears	Once per document	Once per row of a repeating table
On an invoice	Invoice number, issue date, supplier, total	Description, quantity, unit price, amount
In the output	The `metadata` object	One entry per row in `rows`
In a Bucket	Repeated onto every row exported from that document	One Bucket row each

Getting the kind wrong is the classic mistake

Defining a line-item column as a metadata field gets you one value from a table of twenty. Defining an invoice total as a table field repeats the same number on every row. If you are unsure, ask whether a second copy of the value could ever appear on the same document.

A flow can also stamp system columns onto every row it outputs — the flow ID, the flow name and the run ID. Turn these on when several flows write into one Bucket and you need to know which document a row came from.

Data types

Each field carries a type. Types are not cosmetic: they decide whether a value sorts, sums, compares in a Cleaner rule and charts correctly. Setting them right at the flow saves work at every later stage.

Type	Use for	Notes
Text	Names, addresses, descriptions, reference codes	The safe default.
Number	Totals, quantities, prices, rates	Required if you want to sum, compare or chart the value later.
Date	Issue dates, due dates, delivery dates	Reformatting to a consistent output format is a Cleaner job, not an extraction one.
Mixed / alphanumeric	Values that blend letters and digits — part numbers, container codes, tax IDs	Use this rather than Number when leading zeros or letters must survive.
Image	Figures printed in the document: photos, logos, signatures, stamps	Extracted and stored securely, then delivered as a time-limited link.

Extract as printed, normalise later

Do not use the type to reformat. Pull the value the way the document shows it, then let a Cleaner convert currencies, restate dates and fix decimal separators. Extraction that also transforms is harder to debug when a number comes back wrong.

Extraction hints

Hints are how you disambiguate a field without writing a template. They matter most when a document contains several values that look alike — three dates, two totals, an order number and an invoice number in the same header block.

For a metadata field you can combine any of these:

Hint	What it tells the AI	Good for
Example values	Real values copied from your documents.	Almost everything. The single highest-value hint — it shows format, length and shape at once.
Next to a label	The printed label the value sits beside. List the variants: Invoice Number, Invoice #, Inv No.	Header fields that different vendors label differently.
In a specific page area	One of nine zones — top-left through bottom-right.	Values that are always in the same corner, like a document number top-right.
Expected range	A minimum, a maximum, or both. Treated as guidance, not a hard rule.	Catching a decimal-point misread — a total of 27,030 where 270.30 was meant.
Additional hints	Free text for anything the options above do not cover.	Rules like “use the net figure, never the gross one”.

For a table field the hints are different, because the AI is locating a column rather than a point on the page:

Hint	What it tells the AI
Source type	Whether the data sits in a real ruled table or in free-form text that only reads like a list. Set free-form when there is no visible grid.
Column header	The header text as printed. List every variant your vendors use so one field matches them all.
Expected range	A sanity range for the numbers in that column.
Example values	Real cell values from your documents.
Field meaning	What the column actually represents, when the header alone is ambiguous — “unit price before discount”.

Start without hints

Add fields, run one real document, and only add hints where the result was wrong. Hinting everything up front costs time on fields that were never ambiguous, and an over-specified hint can make extraction worse by ruling out a layout you did not anticipate.

Example values are skipped for date and image fields, so put any date guidance in the additional-hints box instead.

Composite fields

Some table columns hold several values in one cell — a size-and-quantity breakdown like S:2 M:5 L:3 printed in a single box. A composite field splits that cell into sub-fields so each part becomes its own value instead of a string you have to parse later.

1Add a table field and switch Composite Field on.
2Define the sub-fields that make up the cell — for example size as text and quantity as a number.
3Add example values showing how the grouping appears in your documents.

Sub-fields hold single values, so they can be text, number, date or mixed — but not images. Composite fields are only available on table fields, because the whole point is unpacking a repeating cell.

Multi-value metadata fields

The metadata equivalent is Accept multiple values. Turn it on when a single document can legitimately carry several of the same thing — a set of receipt numbers, several purchase-order references — and the field returns a list instead of one value.

Extracting images

An image-typed field pulls a figure out of the document rather than text: a product photo, a signature, a stamp, a logo. A metadata image field holds one image per document; a table image field gives each row the image belonging to it.

Images are stored privately, so they arrive downstream as time-limited links rather than raw bytes
The same link appears in the webhook payload, the email output and the CSV cell
Download promptly rather than storing the link — it expires
Image fields cannot be composite, and example-value hints do not apply to them

Build the schema

Build metadata fields first, then table fields, then hints. Test against a real document early — a schema that looks right on paper and a schema that survives your actual paperwork are different things.

1Create the flow. Give it a name that describes the document (Supplier invoices) and a real description — it improves extraction accuracy and is what a Collection matches on later.
2Add a metadata field for each value that appears once per document, setting the data type as you go.
3Add a table field for each column of the repeating line-item table.
4Add extraction hints only to the fields that need them.
5Switch the flow to Active, process one real document, and compare the result against the source.

Let field discovery do the first draft

Uploading a sample document during setup gets you a suggested set of fields to edit, which is faster and usually more complete than typing them from memory. Treat it as a starting point — delete what you will not use, because every extra field is more to review and more that can go wrong.

Renaming a field changes the key in every downstream consumer: the webhook payload, the Bucket column mapping, the CSV header and any Cleaner that reads it. Check what is attached before renaming a field on a flow that is already running.

What you can attach to a flow

The schema decides what comes out; the rest of the flow decides what happens to it. Each item below is independent — attach only what you need, in any order, at any time.

Stage	Attachment	What it does
Inputs	Email Trigger	Gives the flow its own inbox address so forwarded attachments are processed automatically.
Inputs	Collections	Lists the Collections that can route documents to this flow.
Processing	Cleaner	Sweeps every run's rows: reformat, convert, compute, look up, and fire rules.
Processing	Agent	Runs after extraction, using extracted fields as its inputs.
Processing	Form Templates	Fills a PDF template from the extracted values.
Outputs	Email Output	Emails results to one or more addresses when a run completes.
Outputs	Webhook	POSTs results to your endpoint. HTTPS only.
Outputs	Bucket Export	Appends each run's rows to a structured table, with fields mapped onto columns.
Settings	Human in the Loop	Pauses runs for a named reviewer before anything is delivered.
Settings	Flow ID	The identifier you pass when calling the API.

What happens when a run executes

Every document becomes a run, and every run moves through the same sequence. Knowing the order tells you where to look when something arrives late, arrives wrong, or does not arrive at all.

1The document is stored and the run is queued.
2Extraction reads it and produces metadata values and table rows, charged at one credit per page.
3If a Cleaner is attached, it sweeps those rows — conversions, computed columns, lookups.
4Conditional rules fire: rows can be dropped, notifications sent, review requested.
5If review is required, the run pauses and nothing is delivered until a reviewer approves.
6Outputs run in order: email, webhook, Bucket export, form fill, then any chained agent.

Run status	Meaning
Queued	Stored and waiting for a worker.
Processing / running	Being extracted, or resuming after an approval.
Awaiting review	Paused for human review. Nothing has been delivered yet.
Completed	Extraction finished and every configured output has run.
Cancelled	A reviewer rejected the run, so nothing was delivered.
Failed	The document could not be processed. The run's log says why.

Everything a run did is recorded in its log, including which outputs fired and what each one returned. That log is the first place to look before assuming a delivery problem is on your side.

Improving extraction quality

When a field comes back wrong, the fix is nearly always in that field's definition rather than in the document. Work through these in order — the first two solve most cases.

Symptom	Likely cause	Fix
The wrong one of several similar values	Nothing distinguishes them.	Add the label the value sits next to, or the page area it appears in.
A field comes back empty	The field name alone did not identify it.	Add two or three real example values — usually enough on its own.
Only one line item, when there are many	It was defined as a metadata field.	Redefine it as a table field.
The same value repeated on every row	A document-level value was defined as a table field.	Redefine it as a metadata field.
Numbers off by a factor of a hundred	Decimal and thousands separators read the wrong way round.	Set an expected range, and normalise the format in a Cleaner.
Leading zeros or letters dropped	The field is typed as Number.	Change it to Mixed / alphanumeric.
Columns confused with each other	Two columns have similar headers.	Add the printed column header, and the field meaning.
Good on some vendors, poor on others	The hints describe one vendor's layout.	Add the other vendors' label and header variants to the same field.

Change one thing at a time

Re-run the same document after each change. Editing four hints at once and re-running tells you the result improved but not which change did it — and one of the four may have made things worse.
